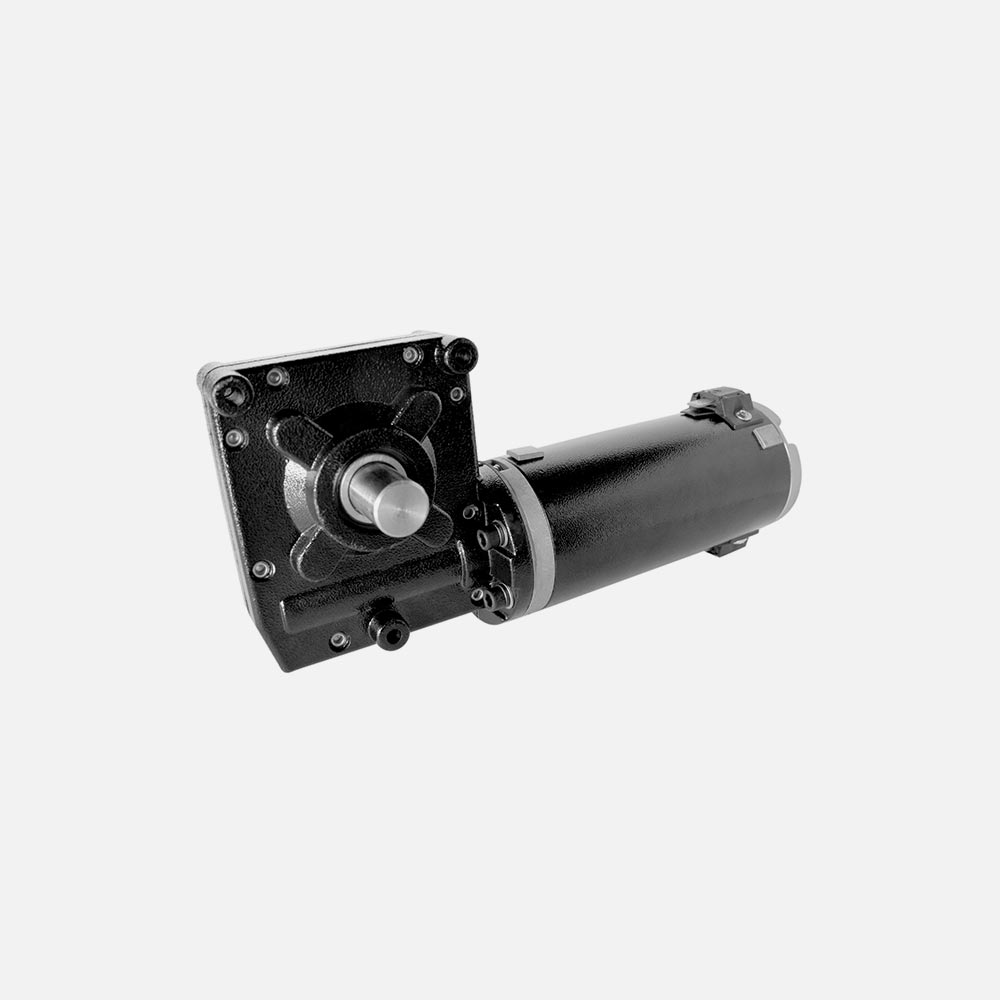

WG4 Series

   综合性能参数

齿轮箱壳体: Ruggedised Die-cast Aluminium
蜗轮蜗杆材料: Bronze, steel or plastic
润滑方式: Grease lubricated & sealed for life
轴承类型: High quality ball bearings
绝缘等级: Class F (Optional: Class B)
环境工作温度: Integral or removable
环境工作温度: -20℃ to +40℃

性能数据


电机尺寸蜗轮材料减速比刹车盘类型输出轴
73ZYT,80ZYT,90ZYTDelrin, Bronze 12.5:1ERB, MRBCustomised
73ZYT,80ZYT,90ZYTDelrin, Bronze 25:1ERB, MRBCustomised
73ZYT,80ZYT,90ZYTDelrin, Bronze 30:1ERB, MRBCustomised
73ZYT,80ZYT,90ZYTDelrin, Bronze 50:1ERB, MRBCustomised

轮廓图
