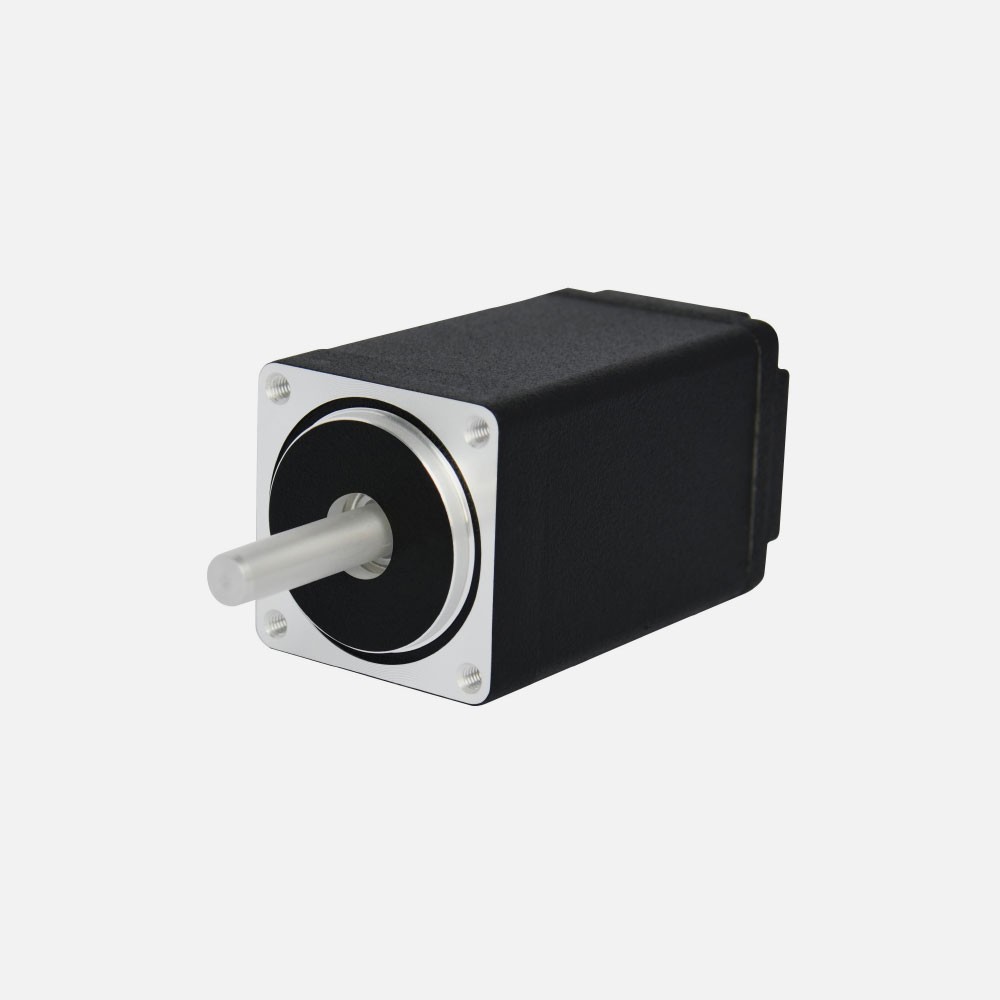

20HSD Series (1.8 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 20N ( 20mm from the flange )
最大轴向力: 2N
转向: CW
绝缘等级: B (130℃)
性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
20HS026DF20JX-01261.8°200.241.2420.1
20HS026DF200X-01261.8°20.61.21.2420.1
20HS030DF650X-01301.8°6.50.63.91.642.50.1
20HS033DF650X-01331.8°6.50.63.91.842.50.11
20HS042DF540X-01421.8°5.40.84.323430.12


轮廓图
