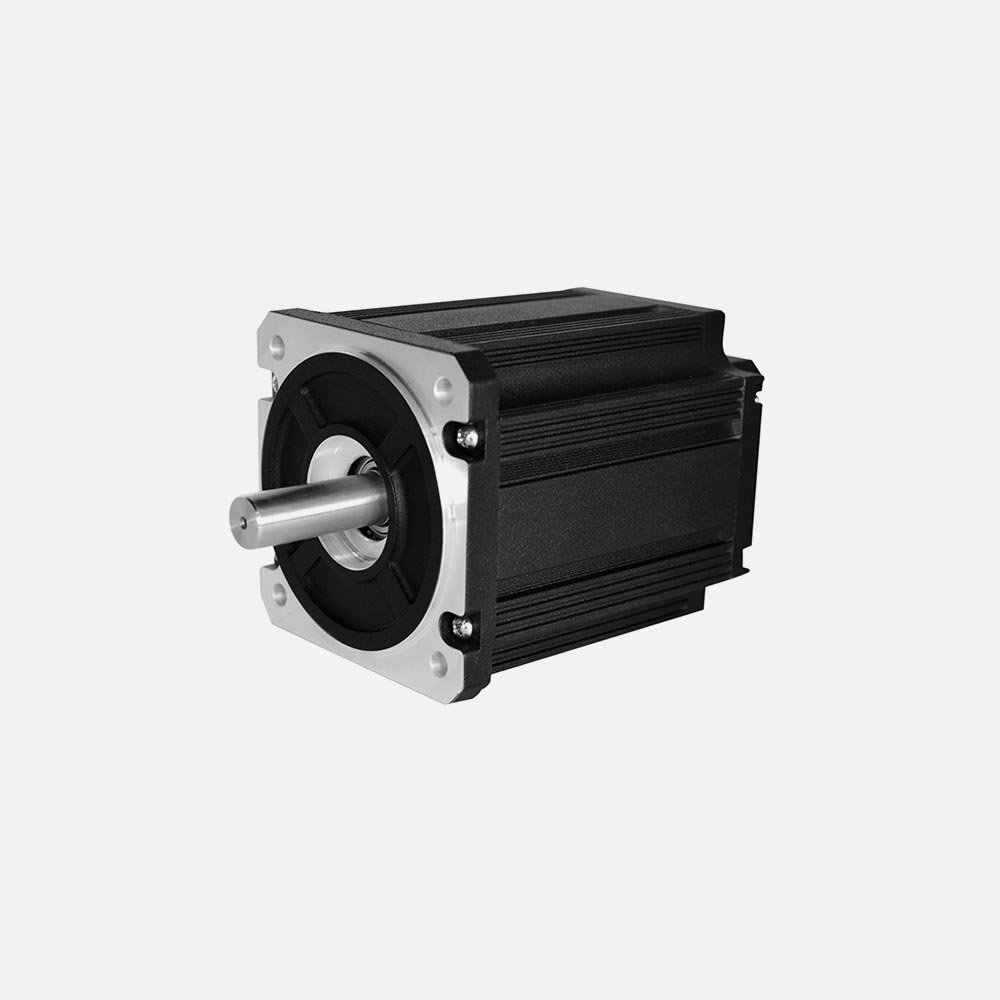

| 综合性能参数 |
| 绕组连续方式： | YWE |
| 霍尔分布角度： | 120 Deg. Electrical angle |
| 径向间隙： | 0.02mm /460g |
| 轴向间隙： | 0.08mm /450g |
| 径向最大承受力： | 220N @ 20mm from the flange |
| 轴向最大承受力： | 60N |
| 绝缘等级： | B |
| 介电强度： | 500VDC for one minute |
| 绝缘电阻： | 100MΩ min., 500VDC |
| 性能数据 |
| 型号 | 极数 | 相数 | 额定电压 | 额定转速 | 持续堵转转矩 | 额定转矩 | 额定功率 | 峰值转矩 |
| Units | VDC | RPM | N.m | N.m | W | N.m | ||
| 90BSA068A030X-01 | 8 | 3 | 12 | 3000 | 0.6 | 0.5 | 157 | 1.5 |
| 90BSA075B030X-01 | 24 | 3000 | 0.8 | 0.7 | 220 | 2.1 | ||
| 90BSA088D010X-01 | 48 | 1000 | 1 | 0.85 | 89 | 2.55 | ||
| 90BSA088D030X-01 | 48 | 3000 | 1 | 0.85 | 267 | 2.55 | ||
| 90BSA108D010X-01 | 48 | 1000 | 1.9 | 1.7 | 178 | 5.1 | ||
| 90BSA108D030X-01 | 48 | 3000 | 1.9 | 1.7 | 534 | 5.1 | ||
| 90BSA136I010X-01 | 310 | 1000 | 3 | 2.5 | 262 | 7.5 | ||
| 90BSA136I030X-01 | 310 | 3000 | 3 | 2.5 | 785 | 7.5 |
| 型号 | 峰值电流 | 转矩常数 | 反电势 | 转动 惯量 | 电机 长度 | 电压范围 | 转速范围 | 重量 |
| Units | A | Nm/A | V/KRPM | g.c㎡ | mm | VDC | RPM | Kg |
| 90BSA068A030X-01 | 50.4 | 0.03 | 3.15 | 0.6 | 68 | 12~80 | 1000~3000 | 1.4 |
| 90BSA075B030X-01 | 70.5 | 0.03 | 3.15 | 0.8 | 75 | 1.7 | ||
| 90BSA088D010X-01 | 7.9 | 0.324 | 34.3 | 1.2 | 88 | 2.1 | ||
| 90BSA088D030X-01 | 21.4 | 0.119 | 12.6 | 1.2 | 88 | 2.1 | ||
| 90BSA108D010X-01 | 16.9 | 0.302 | 32 | 1.8 | 108 | 48~310 | 2.6 | |
| 90BSA108D030X-01 | 42.8 | 0.119 | 12.6 | 1.8 | 108 | 2.6 | ||
| 90BSA136I010X-01 | 4 | 1.89 | 200 | 2.65 | 136 | 4.1 | ||
| 90BSA136I030X-01 | 9.7 | 0.77 | 81.5 | 2.65 | 136 | 4.1 |
| 轮廓图 |
