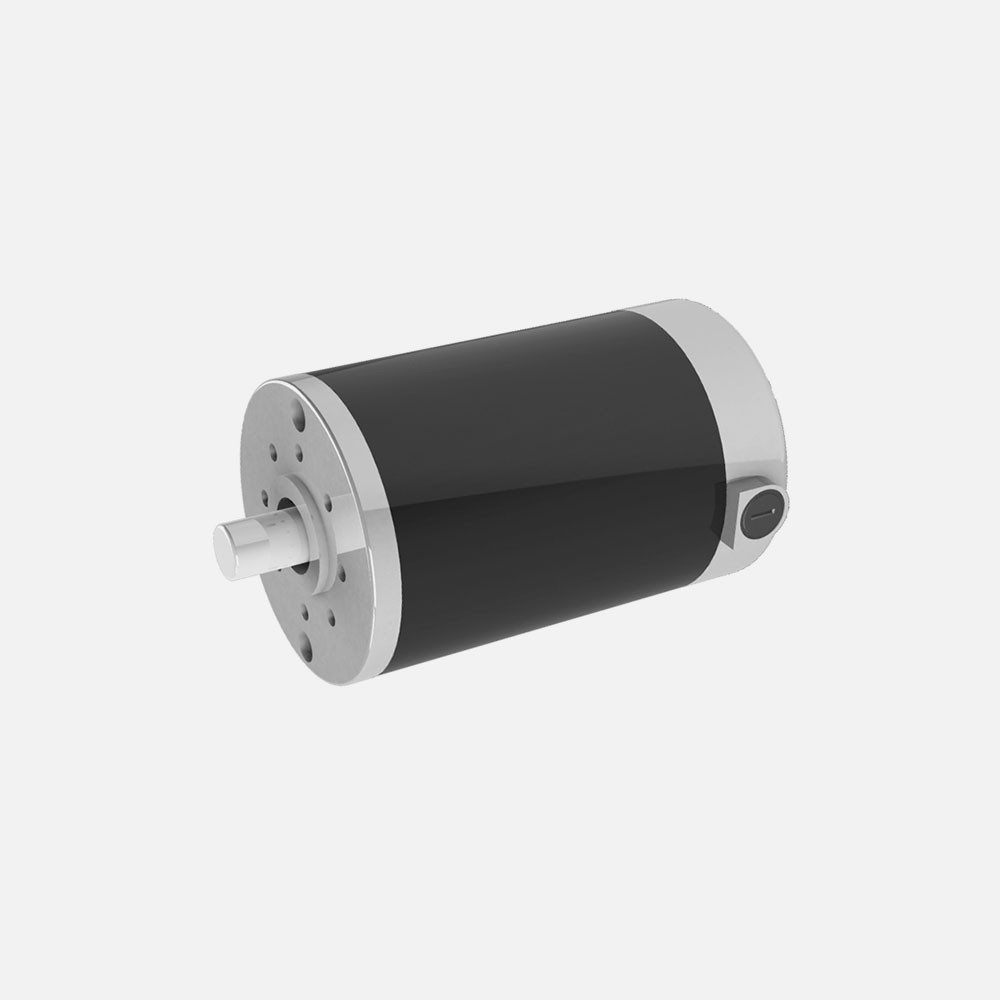

80ZYT Series

   综合性能参数

电压范围: 12 & 24V dc ( 48V also available )
输出功率范围: 90 ~ 150 W
转速范围: up to 9,000 rpm
操作温度: -20℃ ~ +40℃
绝缘等级: F ( consult us for class B )
轴承类型: High quality ball bearings
机壳种类: Closed ( ventilated also available )


性能数据




型号电压额定功率额定转速额定扭矩额定电流空载转速长度
UnitsVWrpmmNmArpmmm
80ZYT122-12V125412004307.11600122
80ZYT122-24V245412004303.51600122
80ZYT122-40V4054120043021600122
80ZYT135-12V12106290035011.53200135
80ZYT135-24V2410629003505.83200135
80ZYT135-40V40128350035043750135
80ZYT-160-24V246014304003.51650160
80ZYT-180-24V248810258205.51300180
80ZYT175-12V122073200620103500175
80ZYT175-24V24201310062063500175
80ZYT175-40V4022133506304.23650175


轮廓图
