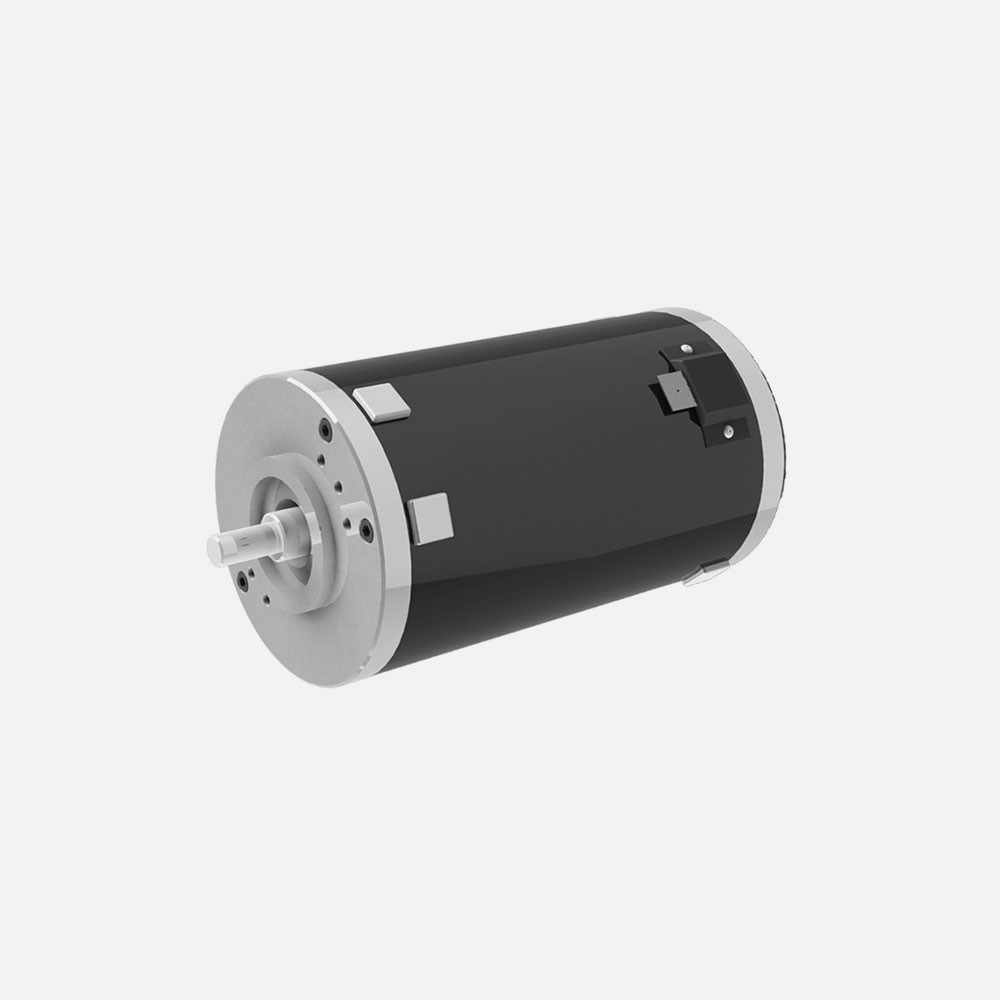

90ZYT Series

   综合性能参数

电压范围: 12 & 24V dc ( 48V also available )
输出功率范围: 150 ~ 300 W
转速范围: up to 9,000 rpm
操作温度: -20℃ ~ +40℃
绝缘等级: F ( consult us for class B )
轴承类型: High quality ball bearings
机壳种类: Closed ( ventilated also available )


性能数据




型号电压额定功率额定转速额定扭矩额定电流空载转速长度
UnitsVWrpmmNmArpmmm
90ZYT155-12V122504750400235540155
90ZYT199-12V1215012001200231500199
90ZYT155-24V24250475050013.85100155
90ZYT199-24V241501200120011.51600199
90ZYT152-24V249510558605.51300152


轮廓图
