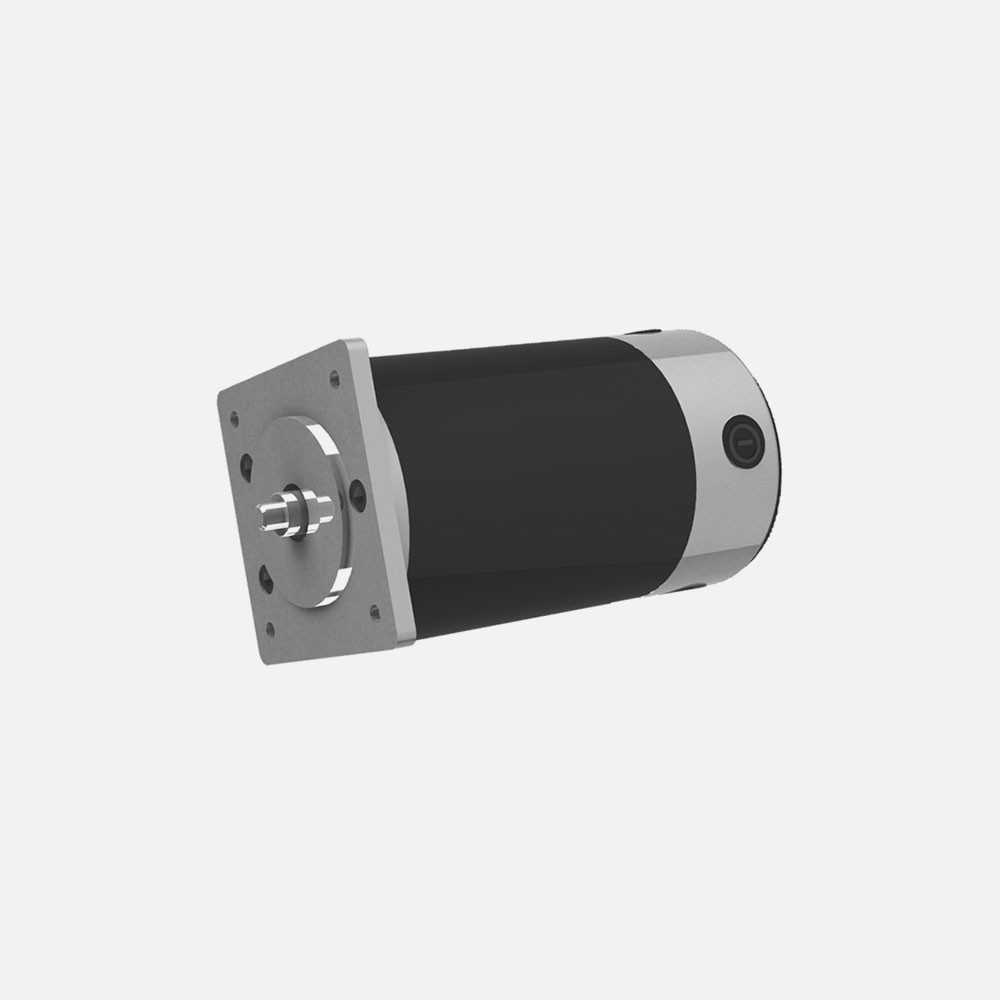

100ZYT Series

   综合性能参数

电压范围: 12 & 24V dc ( 48V also available )
输出功率范围: 90 ~ 150 W
转速范围: up to 9,000 rpm
操作温度: -20℃ ~ +40℃
绝缘等级: F ( consult us for class B )
轴承类型: High quality ball bearings
机壳种类: Closed ( ventilated also available )

性能数据


型号电压额定功率额定转速额定扭矩额定电流空载电流空载转速长度
UnitsVWrpmmNmAArpmmm
100ZYT145-12V1229034500.832.553920145
100ZYT145-24V2429034500.815.62.33920145
100ZYT165-12V1219723500.82232250165
100ZYT165-24V2434841500.820.33.54660165
100ZYT200-12V1218815001.224.531900200
100ZYT200-24V2418815001.2131.51900200

轮廓图
