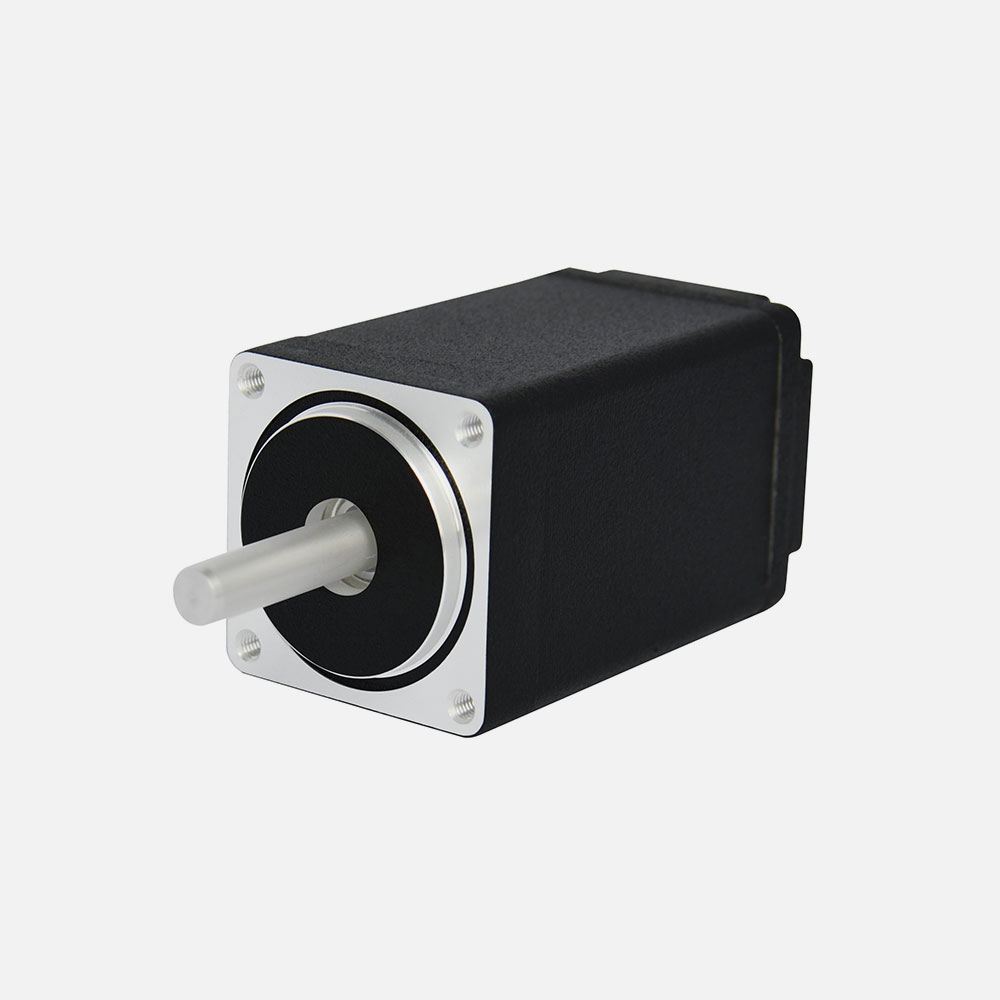

28HSD Series (1.8 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 28N ( 20mm from the flange )
最大轴向力: 10N
转向: CW
绝缘等级: B (130℃)
性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
28HS020DF10JX-01201.8°100.553.4470.1
28HS024DF12JX-01241.8°120.563480.1
28HS031DF48JX-01311.8°480.314.464100.11
28HS033DS36JX-01331.8°360.310.856100.12
28HS040DS340X-01401.8°3.40.953.237.54120.14
28HS050DF350X-01501.8°3.513.5134180.2


轮廓图
