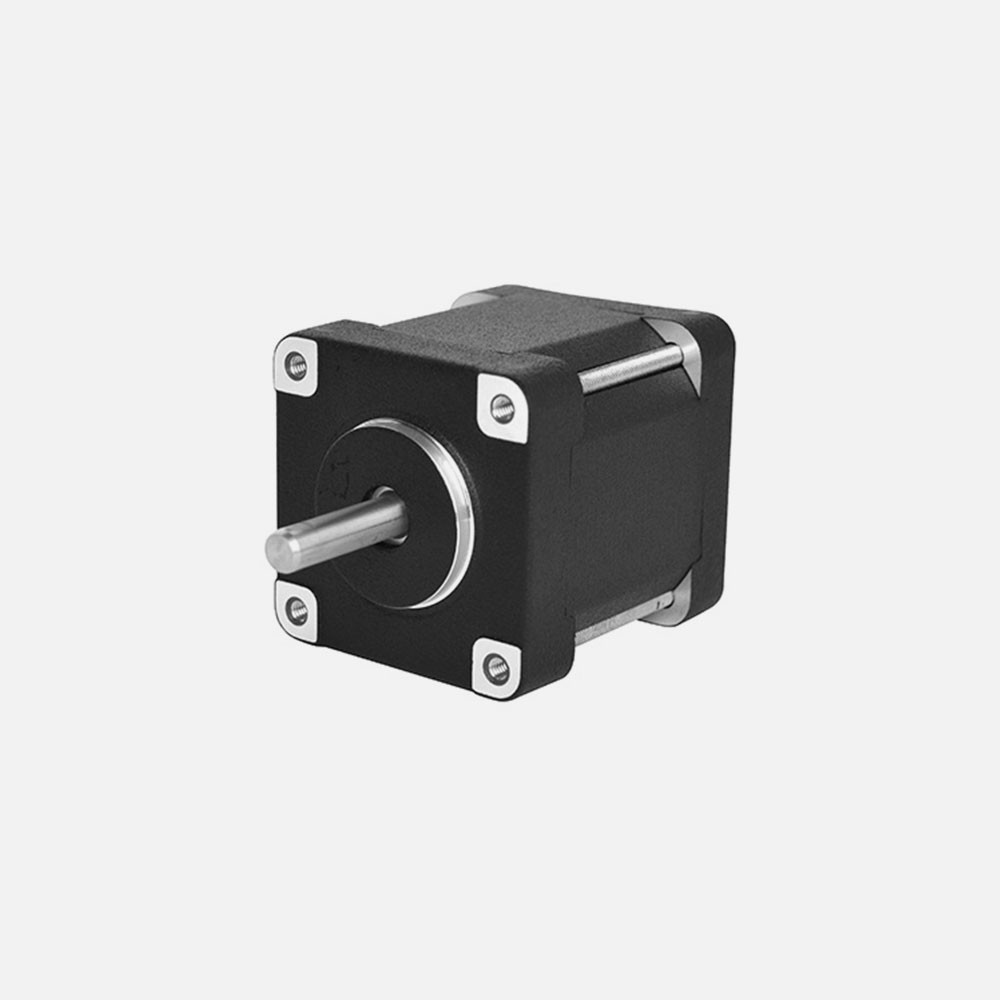

39HSM Series (0.9 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 28N ( 20mm from the flange )
最大轴向力: 10N
转向: CW
绝缘等级: B (130℃)
性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
39HS020MF10JX-01200.9°100.5584100.13
39HS022MF300X-01220.9°31.23.68.24120.135
39HS024MF23JX-01240.9°230.4811144130.14
39HS026MF220X-01260.9°2.212.2124140.13
39HS027MF11JX-01270.9°110.55.5134140.13
39HS033MF12JX-01330.9°120.67.2204170.18
39HS037MS26JX-01370.9°260.410.4186270.22
39HS039MF14JX-01390.9°140.57204290.26

轮廓图
