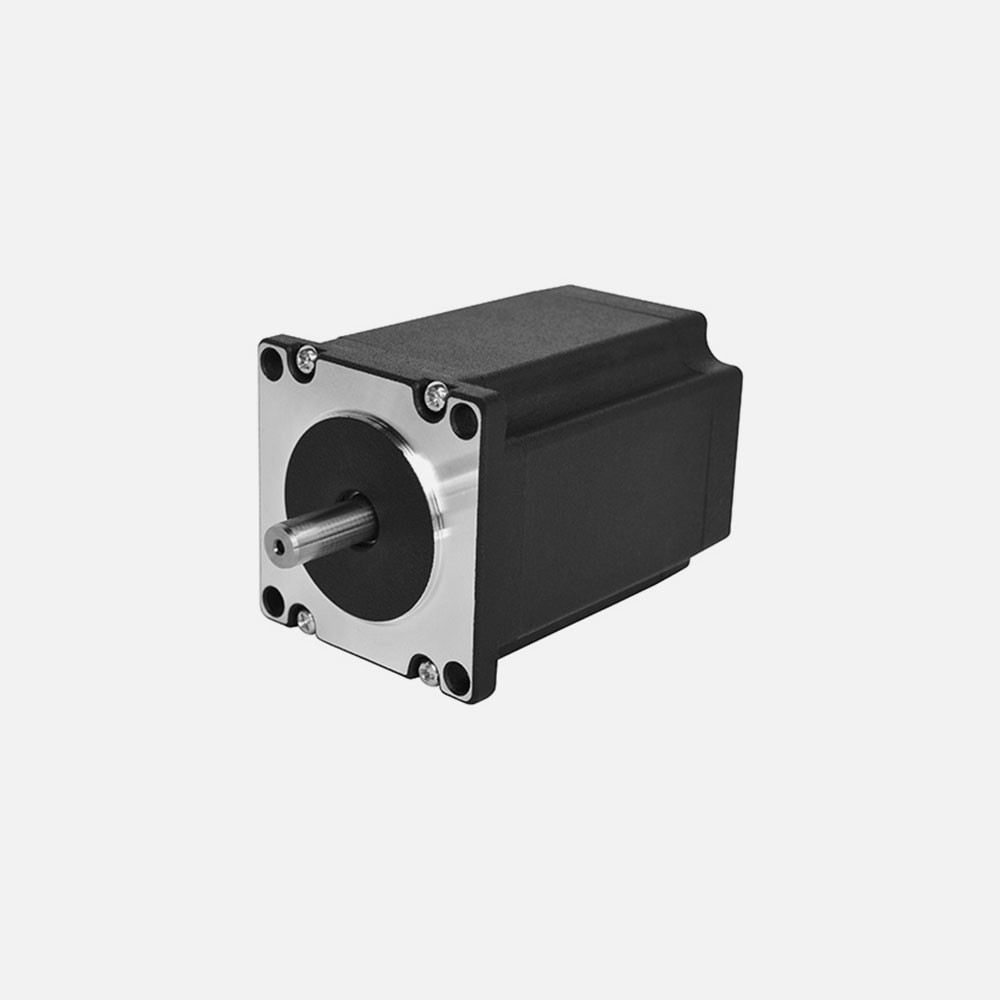

57HSD Series (1.8 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 70N ( 20mm from the flange )
最大轴向力: 30N
转向: CW
绝缘等级: B (130℃)
性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
57HS041DF052X-01411.8°0.5231.565541350.47
57HS045DF12JX-01451.8°120.67.27841800.49
57HS047DF135X-01471.8°1.352.53.37511042100.51
57HS051DF083X-01511.8°0.832.82.32410042300.57
57HS056DF100X-01561.8°12210042800.65
57HS064DF100X-01641.8°13316043400.82
57HS076DF16JX-01761.8°160.711.218044601
57HS080DE075X-01801.8°0.754318085001.1
57HS085DF070X-01851.8°0.742.822045301.2
57HS100DF070X-011001.8°0.753.523046501.4
57HS112DF080X-011121.8°0.832.425047601.5


轮廓图
