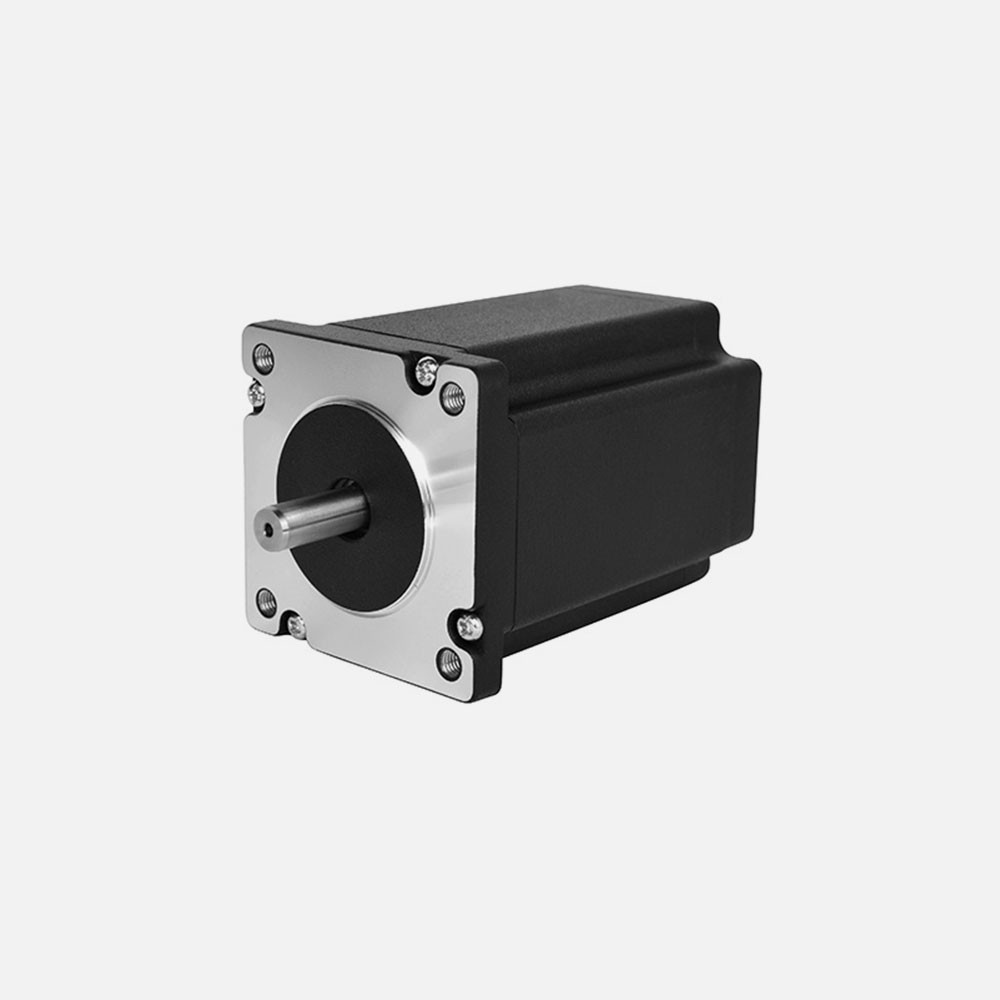

60HSD Series (1.8 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 70N ( 20mm from the flange )
最大轴向力: 30N
转向: CW
绝缘等级: B (130℃)

性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
60HS044DF045X-01441.8°0.454.21.8910642800.62
60HS056DE210D-01561.8°2.124.212084000.8
60HS066DS210B-01661.8°2.12.85.8821065701.02
60HS076DF100X-01761.8°13321047201.18
60HS078DE076X-01781.8°0.763.52.720887501.2
60HS080DF075X-01801.8°0.754320048001.3
60HS088DE130X-01881.8°1.333.921589301.48
60HS100DE100X-011001.8°13.53.5320812001.65

轮廓图
