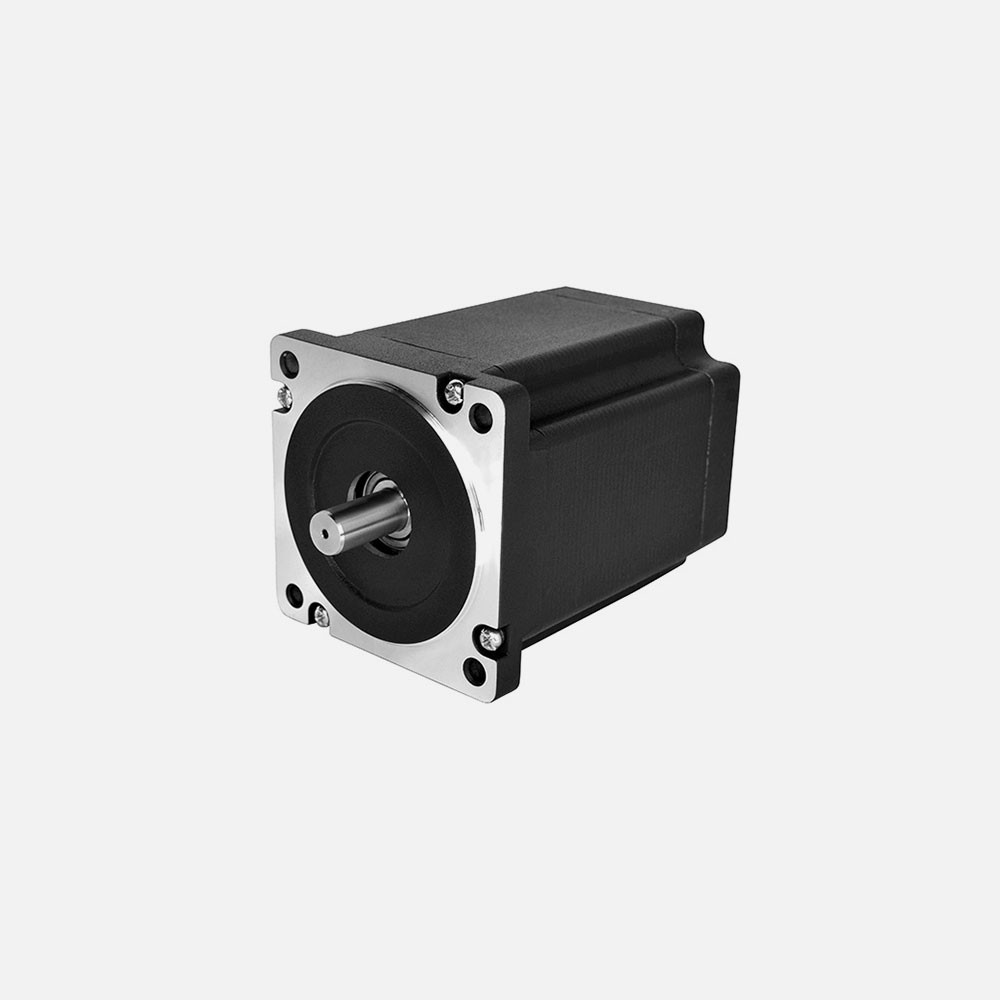

86HSD Series (1.8 degree)

   综合性能参数

步距角精度: ±5% ( full step, no load )
电阻公差: ±10%
电感公差: ±20%
温升: 80℃ max ( rated current, 2 phase on )
工作环境温度: -20℃ ~ +50℃
绝缘电阻: 100MΩ min, 500VDC
介电强度: 500VAC for one minute 5mA
径向跳动: 0.02mm max ( 450g load )
轴向游隙: 0.08mm max ( 450g load )
最大径向力: 220N ( 20mm from the flange )
最大轴向力: 60N
转向: CW
绝缘等级: B (130℃)

性能数据


 型号长度
(mm)
步距角
Deg
 电阻
(Ω)
电流
(A)
电压保持力矩
(N.cm)
 引出线
针脚
转动惯量
(g.cm²)
重量
(kg)
86HS065DE034X-01651.8°0.3451.7290814001.7
86HS066DE048X-01661.8°0.484.52.16220815001.9
86HS078DF042X-01781.8°0.425.52.31460418502.05
86HS080DE075X-01801.8°0.7553.75460819002.1
86HS090DF075X-01901.8°0.7543600423002.4
86HS096DF130X-01961.8°1.32.43.12450427002.8
86HS114DE100X-011141.8°144420832003.15
86HS118DE035X-011181.8°0.357.12.485607835003.3
86HS120DE100X-011201.8°14.54.5800838003.5
86HS150DE085X-011501.8°0.8575.951200845004.2

轮廓图
