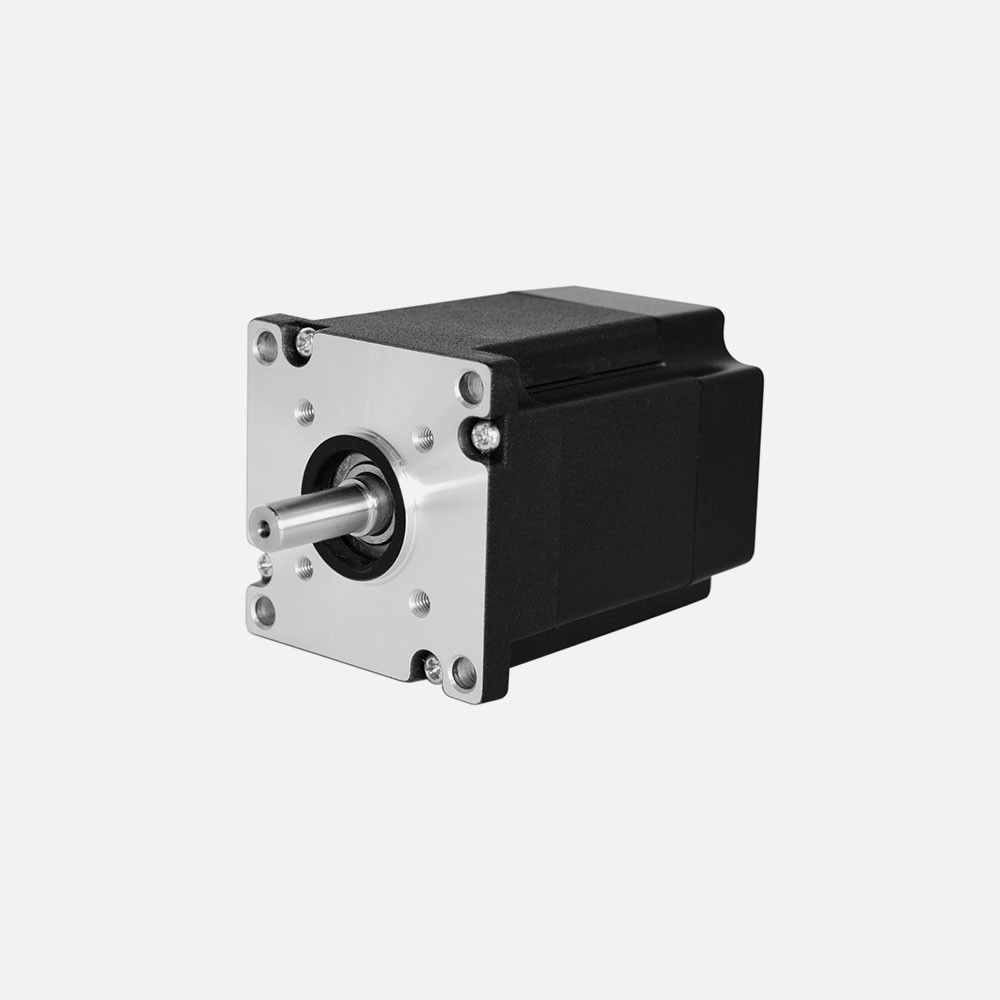

57BSB Series(Servo Motor )

   综合性能参数

绕组连续方式: YWE
霍尔分布角度: 120 Deg. Electrical angle
径向间隙: 0.025mm /460g
轴向间隙: 0.025mm /400g
径向最大承受力: 115N @ 20mm from the flange
轴向最大承受力: 45N
绝缘等级: B
介电强度: 500VDC for one minute
绝缘电阻: 100MΩ min., 500VDC

性能数据


型号极数相数额定电压额定转速持续堵转转矩额定转矩额定功率峰值转矩
Units

VDCRPMN.mN.mWN.m
57BSB076B010X-01832410000.360.331.50.9
57BSB076B030X-0130000.360.394.50.9
57BSB096B010X-0110000.540.45471.35
57BSB096B030X-0130000.540.451411.35
57BSB116B010X-0110000.720.6631.8
57BSB116B030X-0130000.720.61881.8

型号峰值电流转矩常数反电势转动惯量电机长度电压范围转速范围重量
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
57BSB076B010X-015.60.16131007612~801000~30000.65
57BSB076B030X-0116.80.0536100760.65
57BSB096B010X-018.40.1613150960.95
57BSB096B030X-0125.20.0536150960.95
57BSB116B010X-0111.250.16132001161.25
57BSB116B030X-0133.50.05362001161.25

轮廓图
