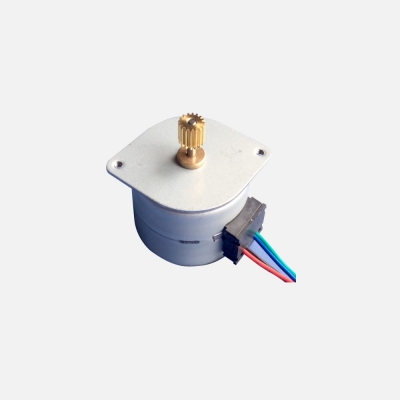

PM42L-048-03H Series
| GENERAL SPECIFICATION |
| Rotation： | CW/CCW |
| Insulation class： | E |
| Max. axial force： | 10N |
| Max. radial force： | 10N @ 5mm from the flange |
| End play： | 0.05-0.55mm /300g |
| Radial play： | 0.05 |
| Dielectric Strength： | 500VDC for one minute |
| Insulation Resistance： | 100MΩ min., 500VDC |
| Ambient Temperature： | -20℃~+50℃ |
| Temperature Rise： | 60Kmax.(rated current,2 phase on) |
| Inductance Accuracy： | ±20% |
| Resistance Accuracy： | ±10% |
| Step Angle Accuracy： | ±7%（full step,no load) |
